PHANTA Camera Link Multiplexer

Phrontier Technologies PHANTA Video Multiplexer

PHANTA Mulitplexer and Video SplitterOur PHANTA multiplexers are compatible with every Camera Link configuration and are capable of connecting any Camera Link configuration camera to maximum 8 framegrabbers. PHANTA is ideal when captured images need to be distributed to multiple framegrabbers synchronously. Applications include intensive parallel image processing, image monitoring, and real-time image analysis. All PHANTA models support a maximum pixel clock rate of 85 MHz, and all image data are transmitted to relevant framegrabbers synchronously and identically.



Key Features

• Compatible with Camera Link Base, Medium, and Full configurations
• User-elected master frame grabber
• Independently control image data path, control signal path, and SerCom path for maximum signal routing flexibility
• Independently shut off unused output ports to avoid signal glitch to framegrabbers
• Reconditioned/synchronized output
• Standard 1U 19″ chassis for easy mounting
• Optional DC output power for cameras
• Clear, easy-to-read LEDs indicate operation status
• Wide range 10V~24V DC power supply
• Seamlessly compatible with our PHOX, PHIRE and PHAST fiber extenders for extra distance




Available Models

Part Number Capability Compatible Configurations
PHANTA-S1F4
1 Full, Medium, or Base camera to 4 framegrabbers Base, Medium, Full (8×8 bit, 10×8 bit)
PHANTA-D2B4 2 Base cameras to 2 groups of 4 frame grabbers Base
PHANTA-S1B8 1 Base camera to 8 frame grabbers Base

Specifications

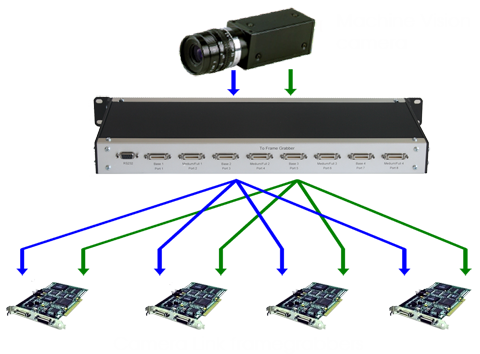

Setup Diagram (Model PHANTA-S1F4 Shown)




Cables & Accessories

MDR26/MDR26
Camera Link Cables MDR26 to MDR26

Product Number: 618-14T26-xx-0LC

Standard MDR26 plug to MDR26 plug.  PoCL Version Available

Phrontier Part Number
Cable Length
Cross 3M Part Number
618-14T26-0.5-0LC
0.5 meter 14T26-SZLB-050-0LC
618-14T26-01-0LC 1 meters 14T26-SZLB-100-0LC
618-14T26-02-0LC
2 meters 14T26-SZLB-200-0LC
618-14T26-2.5-0LC
2.5 meters 14T26-SZLB-250-0LC
618-14T26-03-0LC
3 meters 14T26-SZLB-300-0LC
618-14T26-05-0LC
5 meters 14T26-SZLB-500-0LC
618-14T26-10-0LC
10 meters 14T26-SZLB-A00-0LC
 SDR26 to MDR26
Mini Camera Link to Standard Camera Link Cables

Product Number:618-MCLT26-xx

Standard Mini Camera Link SDR26 plug to standard Camera Link MDR26 plug.  PoCL Version Available

Product Number Description
618-MCLT26-01 Camera Link plug to mini Camera Link plug, 1 meter
618-MCLT26-02 Camera Link plug to mini Camera Link plug, 2 meters
618-MCLT26-03 Camera Link plug to mini Camera Link plug, 3 meters
618-MCLT26-05 Camera Link plug to mini Camera Link plug, 5 meters
618-MCLT26-10 Camera Link plug to mini Camera Link plug, 10 meters
3M Camera Link Cables SDR26/MDR26
Mini Camera Link to Standard Camera Link Cables

3M Product Number: 1MF26-L560-00C-xxx

3M Camera Link cables, Mini Camera Link SDR26 plug to standard Camera Link MDR26 plug.  PoCL Version Available

3M Product Number Description
1MF26-L560-00C-200 Camera Link plug to mini Camera Link plug, 2 meters
1MF26-L560-00C-500 Camera Link plug to mini Camera Link plug, 5 meters
1MF26-L560-00C-A00 Camera Link plug to mini Camera Link plug, 10 meters

Looking for a certain cable? See all the Camera Link cables we stock.
