PHAST Camera Link Fiber Adapter


Camera Link CompliantPoCL CompliantThis compact set of Camera Link fiber adapters differs from our PHIRE series in that PHAST supports Camera Link Full (8×8-bit) and Extended Full (10×8-bit) configurations, and thus are the only choice for Full and Extended Full applications that are space-conscious. They plug directly into any Camera Link camera and framegrabber, extending image transmission distance up to 250 meters via LC duplex fiber cables. Our PHAST fiber adapters boast a pixel clock range up to 85MHz, and PoCL capability for Base configuration. When paired with “ruggedized” cables, this series is ideal for challenging applications, tight spaces, and harsh environments.

Key Features

The compact, yet reliable PHAST series is the only choice for space-sensitive, cost-effective applications.

• Offers 670 MB/s bandwidth
• Plugs directly into cameras and framegrabbers without any Camera Link cables, saving both space and cost
• Supports Camera Link Base, Medium, and Full configurations
• Supports PoCL for Base configuration
• Sends high-speed, real-time image data up to 250 meters over LC duplex fiber cables
• Single 5~24 VDC power supply
• OEM solutions available

Available Models

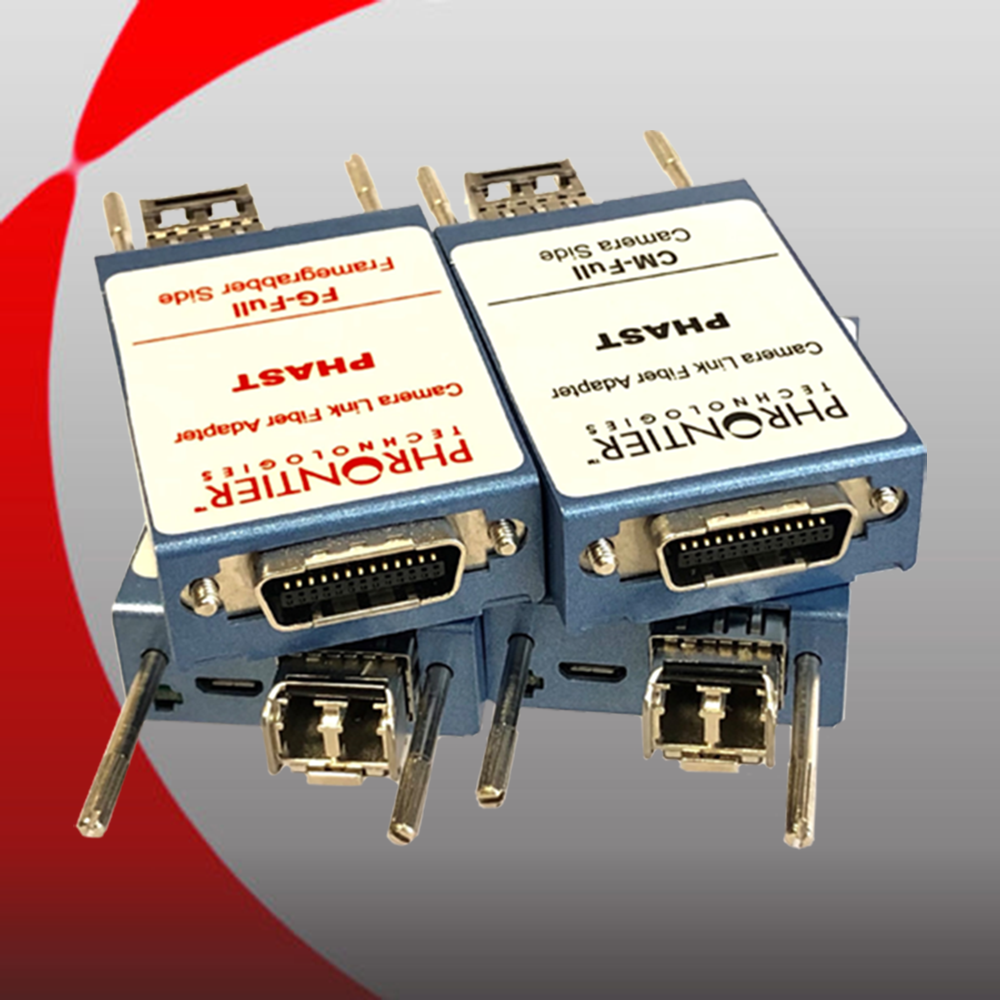

PHAST Fiber Adapter
Model ———— Description
PHF-FM-300 – Configuration for base, medium, full, deca modes, 300 meters via OM3 multimode fiber
PHF-FL-10 – Configuration for base, medium, full, deca modes, 10 kilometers via singlemode fiber (3 fiber)
PHF-FB-10 – Configuration for base, medium, full, deca modes, 10 kilometers via singlemode fiber (2 fiber)

PHF-FM-300-T – Configuration for base, medium, full, deca modes, 300 meters via OM3 multimode fiber, extended temperature
PHF-FL-10-T – Configuration for base, medium, full, deca modes, 10 kilometers via singlemode fiber (3 fiber), extended temperature
PHF-FB-10-T – Configuration for base, medium, full, deca modes, 10 kilometers via singlemode fiber (2 fiber), extended temperature

Adobe PDFSpecifications

*Contact us or custom options, including distance, packaging, voltage, optical wavelength or any special requirement for your applications

Setup Diagram

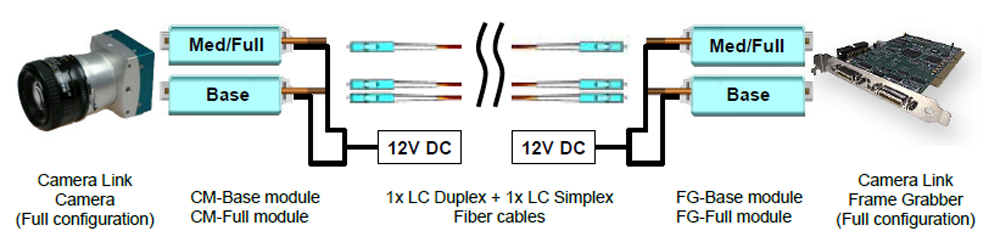

PHAST Setup Diagram Not Available

Cables & Accessories

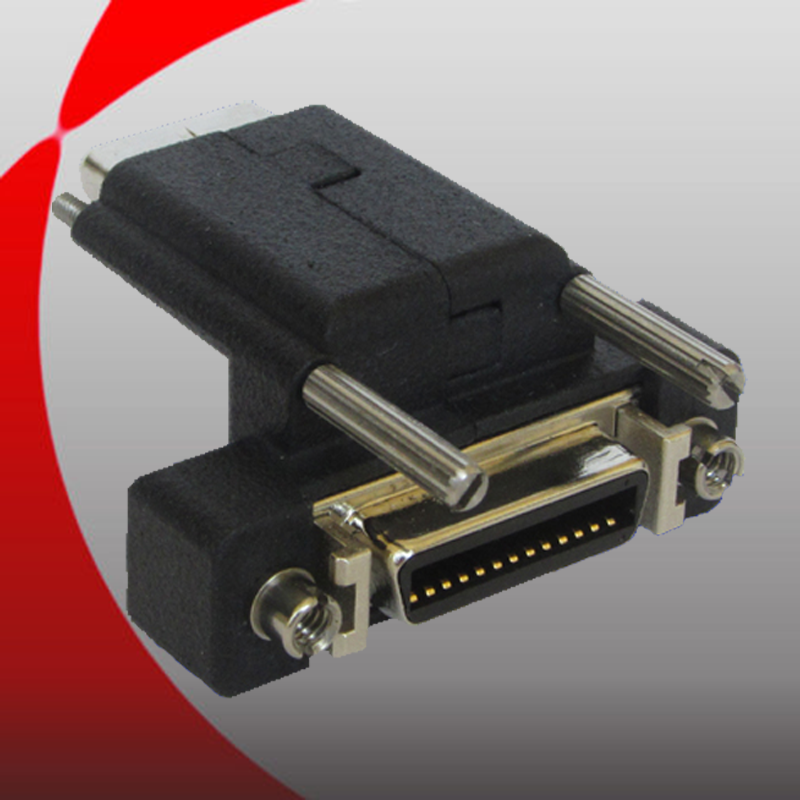

MDR-SDR Converter
MDR-SDR Converter

Compact 26-pin mini-Camera Link SDR plug to standard Camera Link MDR
receptacle with precision 3D printed shells in up and down angles.

Adobe PDFSpecifications


Ruggedized Fiber Cable
(SC-SC Simplex Shown)
Ruggedized Optical Fiber Cables

LC to LC duplex, 3.0 mm jacket, ruggedized connector grade. We also offer
SC connectors, simplex and custom lengths.

Product Number:
LC-LC-M-R3-xxxx (multimode)
LC-LC-S-R3-xxxx (single mode)

Product NumberDescription
LC-LC-M-R3-100D – Multimode duplex fiber, 100 meters
SC-SC-M-R3-100S – Multimode simplex fiber, 100 meters
LC-LC-S-R3-100D — Single mode duplex fiber, 100 meters
SC-SC-S-R3-100S — Single mode simplex fiber, 100 meters


LC/LC Duplex Fiber Cable
Multimode
Optical Fiber Cables – Multimode LC/LC Duplex

LC to LC duplex multimode fiber, 62.5/125 µm or 50/125 µm, 1.8 mm jacket, riser
grade. Custom lengths available up to 250 meters.

Product Number: LC-LC-M-D-xxxM

Product Number
Description
LC-LC-M-D-10M
—-10 meters
LC-LC-M-D-15M
—- 15 meters
LC-LC-M-D-25M
—- 25 meters
LC-LC-M-D-30M
—-30 meters
LC-LC-M-D-50M
—-50 meters
LC-LC-M-D-100M
— 100 meters


3M Camera Link
SDR26 to MDR26
3M Camera Link MDR/SDR Adapter Cables

3M SDR26 (mini Camera Link) plug to MDR26 receptacle cable.
PoCL Version Available

Product Number: 1MG26-LFW0-00C-xxx

Product Number ———— Description
1MG26-LFW0-00C-100 — 3M Mini Camera Link (plug) to Standard Camera
Link (receptacle) cable, 1 meter
1MG26-LFW0-00C-200 — 3M Mini Camera Link (plug) to Standard Camera
Link (receptacle) cable, 2 meters
1MG26-LFW0-00C-500 — 3M Mini Camera Link (plug) to Standard Camera
Link (receptacle) cable, 5 meters
1MG26-LFW0-00C-A00 — 3M Mini Camera Link (plug) to Standard Camera
Link (receptacle) cable, 10 meters


MDR26 Adapter Cable
3M Camera Link MDR/MDR Adapter Cables

3M MDR26 plug to MDR26 receptacle cables for applications
where a feed through cable is required.

Product Number: 1W226-TZLB-xxx-0LC

Product Number ———- Description
1W226-TZLB-050-0LC — 3M Camera Link plug to receptacle cable, 0.5 meter
1W226-TZLB-100-0LC — 3M Camera Link plug to receptacle cable, 1 meter
1W226-TZLB-150-0LC — 3M Camera Link plug to receptacle cable, 1.5 meter
1W226-TZLB-200-0LC — 3M Camera Link plug to receptacle cable, 2 meter

Want more fiber? See our complete list of fiber patchcords.
