PHORTE CoaXPress Fiber Extenders 2 Channel (Dual)
The new PHORTE 2-channel fiber extender fully supports CoaXPress standard and extends link distance over fiber as far as 80 kilometers. Transparent in design with no programming needed, PHORTE-2 is robust and user-friendly. Working with either multimode or single mode LC fiber cable, PHORTE is your best choice for architecting a reliable high speed vision system.
Key Features
| • Supports all high-speed bit rates: 1.25G, 2.5G, 3.125G, 5G, and 6.25Gb/s |
| • PoCXP capability allows the module to supply power to camera and receive power from framegrabber |
| • Extends up to 80 kilometers over single mode fiber |
| • Optional AUX channels for additional RS232/RS422/GPIO devices |
| • Plug-and-play: no configuration required |
| • Standard DIN 1.0/2.3 connectors |
| • Compact size: 88L x14W x41.25H mm |
Available Models
 | Model —— Description PHT2-M — Extends up to 300 meters with OM3 multimode fiber or 400 meters with OM4 multimode fiber Includes: 1x PHORTE-CM, 1x PHORTE-FG, 1x 24V AC/DC adapter PHT2-S — Extends up to 10 kilometers with single mode duplex fiber Includes: 1x PHORTE-CM, 1x PHORTE-FG, 1x 24V AC/DC adapter PHT2-B — Extends up to 10 kilometers with single mode simplex fiber Includes: 1x PHORTE-CM, 1x PHORTE-FG, 1x 24V AC/DC adapter  Specifications |

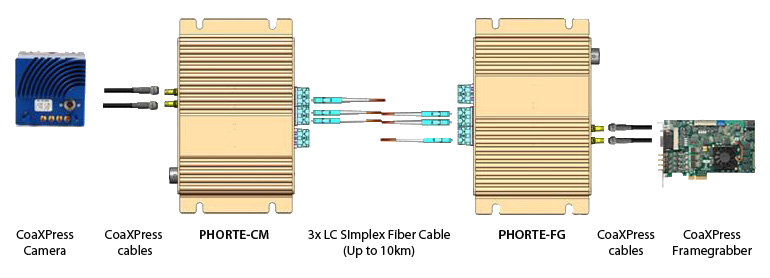

Setup Diagram
Cables & Accessories
 Ruggedized Fiber Cable (SC-SC Simplex Shown) | Ruggedized Optical Fiber Cables LC to LC duplex, 3.0 mm jacket, ruggedized connector grade. We also offer SC connectors, simplex and custom lengths. Product Number: LC-LC-M-R3-xxxx (multimode) LC-LC-S-R3-xxxx (single mode) Product Number — Description LC-LC-M-R3-100D – Multimode duplex fiber, 100 meters SC-SC-M-R3-100S – Multimode simplex fiber, 100 meters LC-LC-S-R3-100D — Single mode duplex fiber, 100 meters SC-SC-S-R3-100S — Single mode simplex fiber, 100 meters |
 LC/LC Duplex Fiber Cable Multimode | Optical Fiber Cables – Multimode LC/LC Duplex LC to LC duplex multimode fiber, 62.5/125 µm or 50/125 µm, 1.8 mm jacket, riser grade. Custom lengths available up to 250 meters. Product Number: LC-LC-M-D-xxxM Product Number — Description LC-LC-M-D-10M —-10 meters LC-LC-M-D-15M —- 15 meters LC-LC-M-D-25M —- 25 meters LC-LC-M-D-30M —-30 meters LC-LC-M-D-50M —-50 meters LC-LC-M-D-100M — 100 meters |
 LC/LC Simplex Multimode | Optical Fiber Cables – Multimode Simplex Multimode simplex fiber cable, 62.5/125 µm, 1.8 mm jacket, standard connectors, riser grade. Rugged version available. Product Number: LC-LC-M-S-xxxx (LC/LC) SC-SC-M-S-xxxx (SC/SC) LC-SC-M-S-xxxx (LC/SC) Product Number — Description LC-LC-M-S-10M —- LC/LC connectors, 10 meters LC-LC-M-S-15M —- LC/LC connectors, 15 meters LC-LC-M-S-30M —- LC/LC connectors, 30 meters LC-LC-M-S-50M —- LC/LC connectors, 50 meters SC-SC-M-S-10M —- SC/SC connectors, OM2, 10 meters SC-SC-M-S-30M —- SC/SC connectors, OM2, 30 meters LC-SC-M-S-1M —— LC/SC connectors, 1 meter |
 LC/LC Single Mode Duplex | Optical Fiber Cables – Singlemode Duplex LC to LC single mode duplex fiber cable, 9/125 µm, 2.0 mm jacket, riser grade. Product Number: LC-LC-S-D-xxxM Product Number — Description LC-LC-S-D-10M —– 10 meters LC-LC-S-D-30M —– 30 meters LC-LC-S-D-35M —– 35 meters LC-LC-S-D-100M — 100 meters LC-LC-S-D-200M — 200 meters |
 SC/SC Simplex Single Mode | Optical Fiber Cables – Single Mode Simplex Single Mode simplex fiber cable, 9/125 µm, 1.8 mm jacket, standard connector, riser grade. Rugged version available. Product Number: LC-LC-S-S-xxxx (LC/LC connectors) SC-SC-S-S-xxxx (SC/SC connectors) LC-SC-S-S-xxxx (LC/SC connectors) Product Number — Description LC-LC-S-S-10M —— LC/LC connectors, 10 meters LC-LC-S-S-20M —— LC/LC connectors, 20 meters LC-LC-S-S-30M —— LC/LC connectors, 30 meters LC-LC-S-S-50M —— LC/LC connectors, 50 meters SC-SC-S-S-10M —— SC/SC connectors, 10 meters LC-SC-S-S-3M ——– LC/SC connectors, 3 meters |
Want more fiber? See our complete list of fiber patchcords.
