PHIRE Camera Link Fiber Adapter, PoCL

Our compact fiber optic adapter plugs directly into any base configuration Camera Link camera or framegrabber and transmits data as far as 80 kilometers with true, transparent communication up to 85 MHz pixel clock. PHIRE is also compatible with Power Over Camera Link (PoCL). Our adapters are available in LC, 1-fiber or 2-fiber versions, as well as in CWDM wavelengths.

Key Features
The compact, yet reliable PHIRE series is the only choice for space-sensitive, cost-effective applications.

• Supports all Camera Link Base cameras/framegrabbers up to 85 MHz
• PoCL compatible
• Direct plug – no electrical cable needed
• Zero loss and transparent transport – no programming needed
• Sends high-speed, real-time image data over single mode or multimode fiber
• Single 5~24VDC power supply with locking AC/DC power adapters
• Transmission distance can be either 250 meters via multimode fiber or up to 80 kilometers via single mode fiber
• Exchangeable optical module is easy to upgrade
• Available in CWDM-specific versions
• Compact size – 59L x 39.4W x 17H mm (2.326Lx1.55Wx0.669H inch)

Available Models

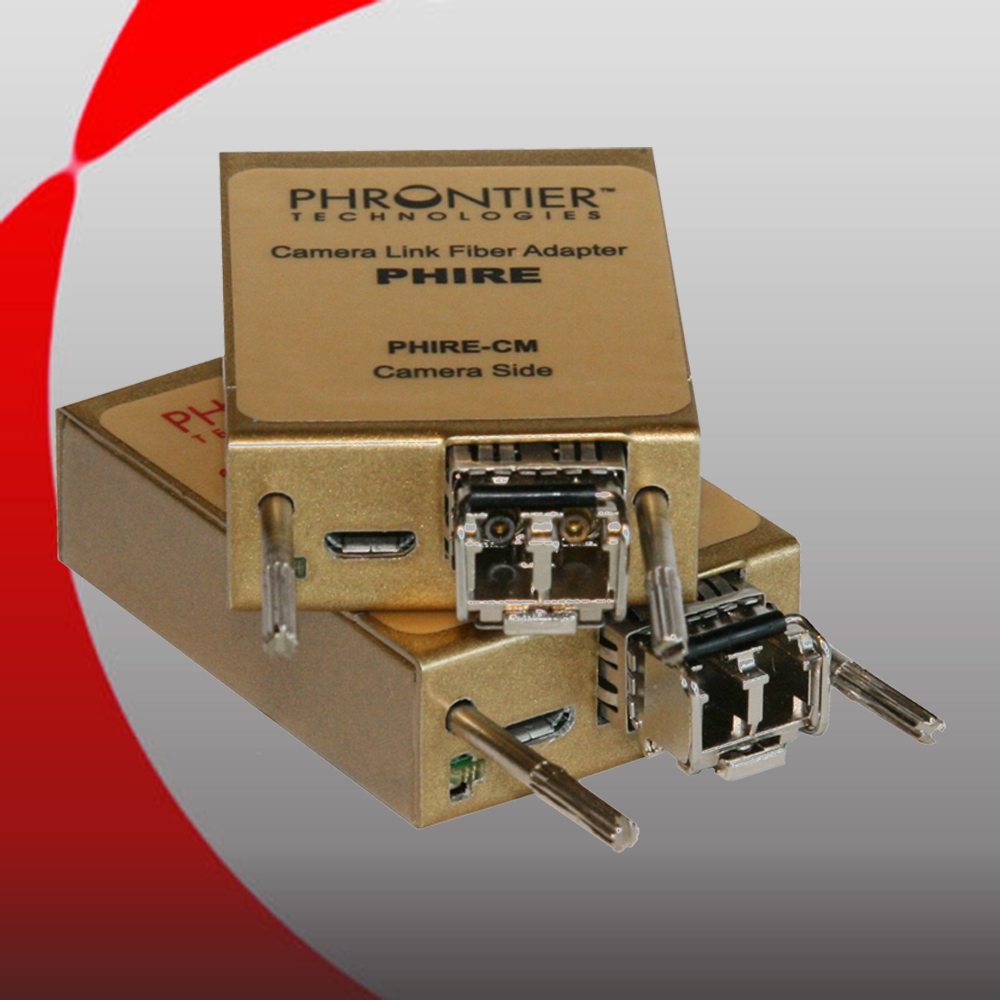

2 Fiber Modules

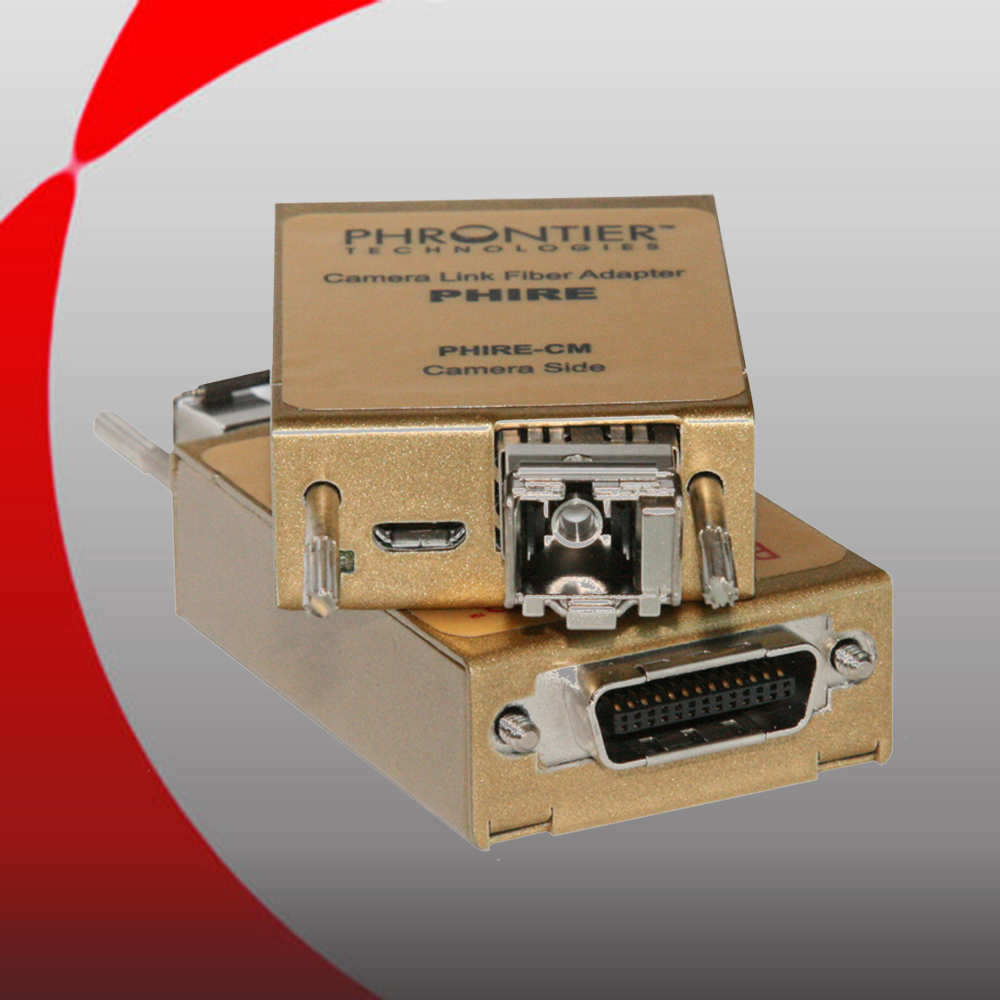

1 Fiber Modules
Model ———— Description
PHR-85-M020 — 24 bit, 85 MHz, multimode with LC connectors, up to 200 meters
PHR-85-M025 — 16 bit, 85 MHz, multimode with LC connectors, up to 250 meters
PHR-85-S07 — 24 bit, 85 MHz, single mode with LC connectors, up to 7 kilometers
PHR-85-S10 — 16 bit, 85 MHz, single mode with LC connectors, up to 10 kilometers
PHR-68-M025 — 24 bit, 68 MHz, multimode with LC connectors, up to 250 meters
PHR-68-S10 — 24 bit, 68 MHz, single mode with LC connectors, up to 10 kilometers

Specifications

*Contact us for custom options, including distance, packaging, voltage, CWDM solutions, temperature range, or any special requirement for your applications. We provide OEM boards.
Model ———— Description
PHL-85-M50 — 16 bit, 85 MHz, multimode with LC connectors, up to 500 meters
PHL-85-M25 — 24 bit, 85 MHz, multimode with LC connectors, up to 250 meters
PHL-85-S07 — 24 bit, 85 MHz, single mode with LC connectors, up to 5 kilometers
PHL-85-S10 — 16 bit, 85 MHz, single mode with LC connectors, up to 10 kilometers
PHL-68-M50 — 24 bit, 68 MHz, multimode with LC connectors, up to 500 meters
PHL-68-S10 — 24 bit, 68 MHz, single mode with LC connectors, up to 10 kilometers

Specifications

*Contact us for custom options, including distance, packaging, voltage, optical wavelength, or any special requirement for your applications.

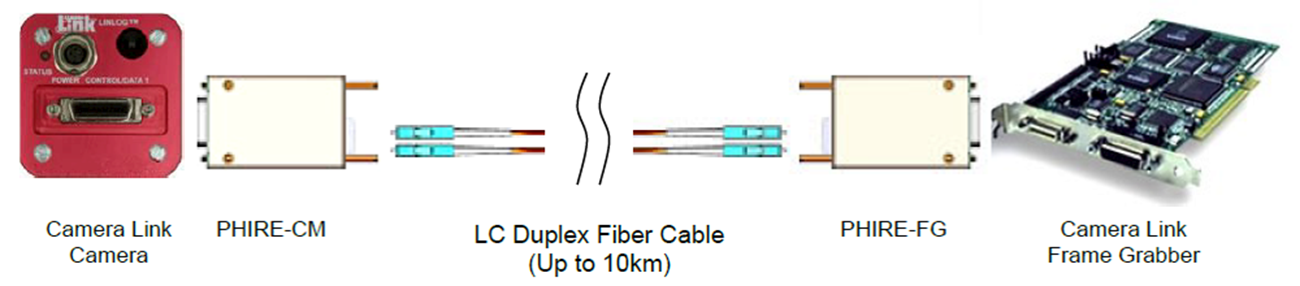

Setup Diagram

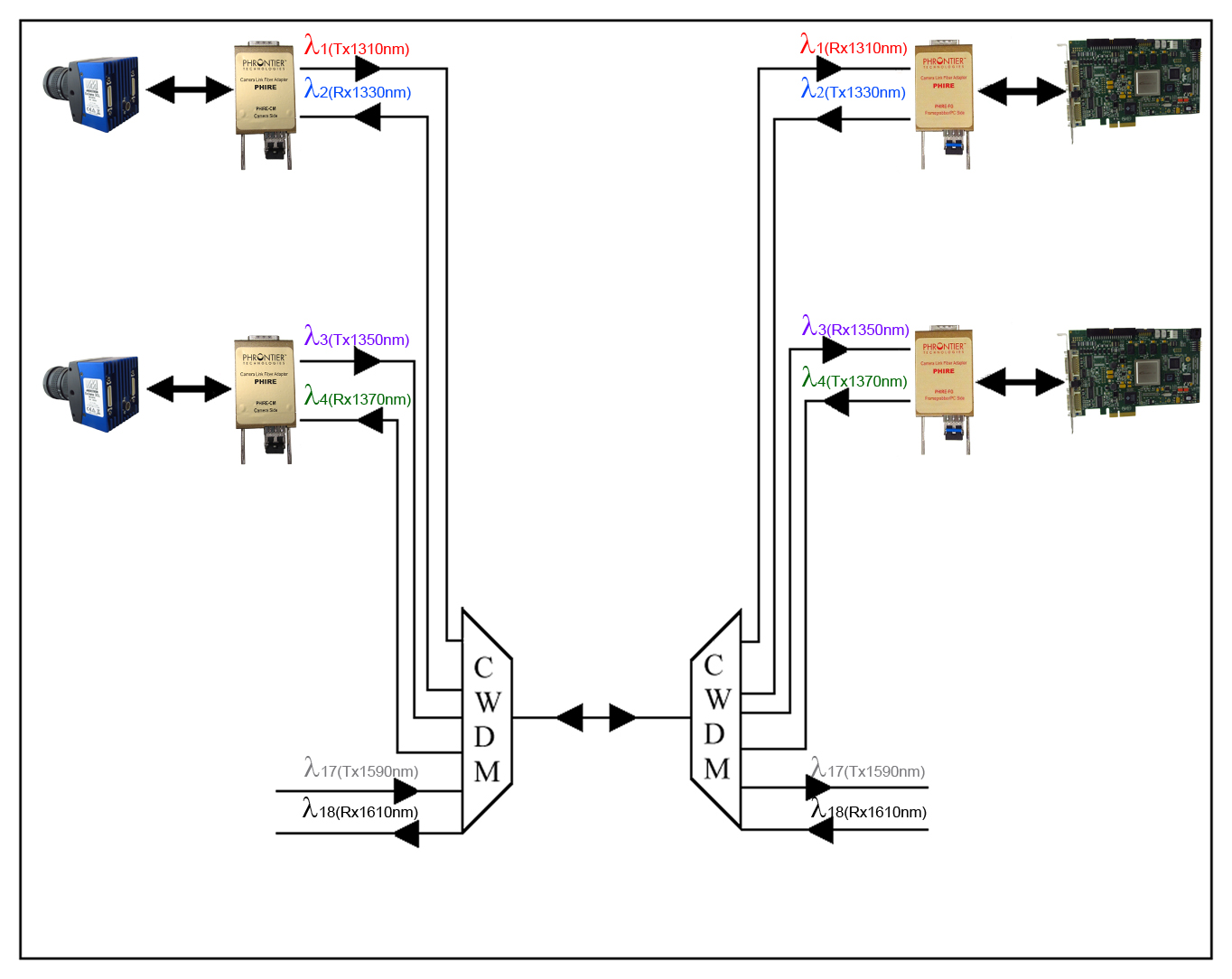

CWDM Setup Diagram

PHIRE CWDM Setup Not Available

Cables and Accessories



MDR-SDR Converter
MDR-SDR Converter

Compact 26-pin mini-Camera Link SDR plug to standard Camera Link MDR
receptacle with precision 3D printed shells in up and down angles.






Adobe PDFSpecifications


LC/LC Duplex Fiber Cable
Multimode
Optical Fiber Cables – Multimode LC/LC Duplex

LC to LC duplex multimode fiber, 62.5/125 µm or 50/125 µm, 1.8 mm jacket,
riser grade. Custom lengths available up to 250 meters.

Product Number: LC-LC-M-D-xxxM

Product Number
Description
LC-LC-M-D-10M
—-10 meters
LC-LC-M-D-15M
—- 15 meters
LC-LC-M-D-25M
—- 25 meters
LC-LC-M-D-30M
—-30 meters
LC-LC-M-D-50M
—-50 meters
LC-LC-M-D-100M
— 100 meters


LC/LC Single Mode Duplex
Optical Fiber Cables – Singlemode Duplex

LC to LC single mode duplex fiber cable, 9/125 µm, 2.0 mm jacket, riser grade.

Product Number: LC-LC-S-D-xxxM

Product Number Description
LC-LC-S-D-10M —– 10 meters
LC-LC-S-D-30M —– 30 meters
LC-LC-S-D-35M —– 35 meters
LC-LC-S-D-100M — 100 meters
LC-LC-S-D-200M — 200 meters


Ruggedized Fiber Cable
(SC-SC Simplex Shown)
Ruggedized Optical Fiber Cables

LC to LC duplex, 3.0 mm jacket, ruggedized connector grade. We also offer SC
connectors, simplex and custom lengths.

Product Number:
LC-LC-M-R3-xxxx (multimode)
LC-LC-S-R3-xxxx (single mode)

Product NumberDescription
LC-LC-M-R3-100D – Multimode duplex fiber, 100 meters
SC-SC-M-R3-100S – Multimode simplex fiber, 100 meters
LC-LC-S-R3-100D — Single mode duplex fiber, 100 meters
SC-SC-S-R3-100S — Single mode simplex fiber, 100 meters


LC/LC Simplex Multimode
Optical Fiber Cables – Multimode Simplex

Multimode simplex fiber cable, 62.5/125 µm, 1.8 mm jacket, standard connectors,
riser grade. Rugged version available.

Product Number:
LC-LC-M-S-xxxx (LC/LC)
SC-SC-M-S-xxxx (SC/SC)
LC-SC-M-S-xxxx (LC/SC)

Product NumberDescription
LC-LC-M-S-10M —- LC/LC connectors, 10 meters
LC-LC-M-S-15M —- LC/LC connectors, 15 meters
LC-LC-M-S-30M —- LC/LC connectors, 30 meters
LC-LC-M-S-50M —- LC/LC connectors, 50 meters
SC-SC-M-S-10M —- SC/SC connectors, OM2, 10 meters
SC-SC-M-S-30M —- SC/SC connectors, OM2, 30 meters
LC-SC-M-S-1M —— LC/SC connectors, 1 meter


SC/SC Simplex Single Mode
Optical Fiber Cables – Single Mode Simplex

Single Mode simplex fiber cable, 9/125 µm, 1.8 mm jacket, standard connector,
riser grade. Rugged version available.

Product Number:
LC-LC-S-S-xxxx (LC/LC connectors)
SC-SC-S-S-xxxx (SC/SC connectors)
LC-SC-S-S-xxxx (LC/SC connectors)

Product NumberDescription
LC-LC-S-S-10M —— LC/LC connectors, 10 meters
LC-LC-S-S-20M —— LC/LC connectors, 20 meters
LC-LC-S-S-30M —— LC/LC connectors, 30 meters
LC-LC-S-S-50M —— LC/LC connectors, 50 meters
SC-SC-S-S-10M —— SC/SC connectors, 10 meters
LC-SC-S-S-3M ——– LC/SC connectors, 3 meters


3M Camera Link MDR/SDR Adapter Cables
3M Camera Link MDR/SDR Adapter Cables

3M SDR26 (mini Camera Link) plug to MDR26 receptacle cable.
PoCL Version Available

Product Number: 1MG26-LFW0-00C-xxx

Product Number ———— Description
1MG26-LFW0-00C-100 — 3M Mini Camera Link (plug) to Standard Camera Link (receptacle) cable, 1 meter
1MG26-LFW0-00C-200 — 3M Mini Camera Link (plug) to Standard Camera Link (receptacle) cable, 2 meters
1MG26-LFW0-00C-500 — 3M Mini Camera Link (plug) to Standard Camera Link (receptacle) cable, 5 meters
1MG26-LFW0-00C-A00 — 3M Mini Camera Link (plug) to Standard Camera Link (receptacle) cable, 10 meters


MDR26 Adapter Cable
3M Camera Link MDR/MDR Adapter Cables

3M MDR26 plug to MDR26 receptacle cables for applications where a feed
through cable is required.

Product Number: 1W226-TZLB-xxx-0LC

Product Number ———- Description
1W226-TZLB-050-0LC — 3M Camera Link plug to receptacle cable, 0.5 meter
1W226-TZLB-100-0LC — 3M Camera Link plug to receptacle cable, 1 meter
1W226-TZLB-150-0LC — 3M Camera Link plug to receptacle cable, 1.5 meter
1W226-TZLB-200-0LC — 3M Camera Link plug to receptacle cable, 2 meter

Want more fiber? See our complete list of fiber patchcords.
