PHORTE CoaXPress Repeater 4 Channel

Our CoaXPress 4-channel repeater, PHORTE fully supports CoaXPress 2.0 standard and extends link distance for coaxial cables. With no programming needed, every module plugs directly into any application for ease of use. The repeater also supports PoCXP to supply power to the camera and receive power from the frame grabber. With its range of functions, PHORTE is one of the most versatile and easy-to-use products on the market.

Key Features

• Supports all high-speed bit rates: 1.25G, 2.5G, 3.125G, 5G, 6.25G, 10G, and 12.5Gb/s

• PoCXP capability allows the module to supply power to camera and receive power from framegrabber

• Plug-and-play: no configuration required

• Wide operating temperature range

• Compact size

Available Models

	Model ———- Description PHE4-RP-T — CoaXPress repeater for up to 4 channels and 12.5Gb/s, standard micro-BNC connectors Specifications
	Model ———- Description PHT4-RP-T — CoaXPress repeater for up to 4 channels and 6.25Gb/s, standard DIN 1.0/2.3 connectors Specifications

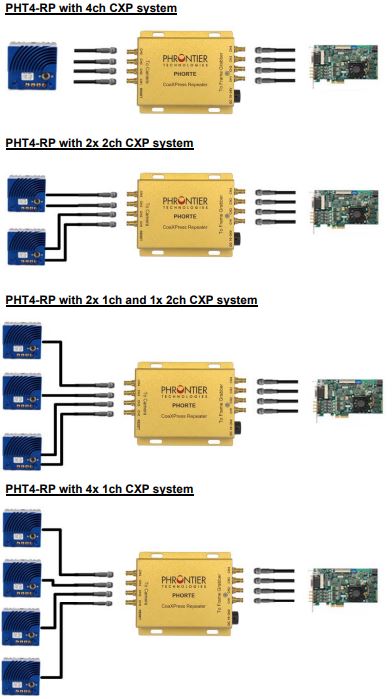

Setup Diagram
