PHORTE CoaXpress Fiber Extenders 4 Channel (Quad)
Our PHORTE 4-channel fiber extenders fully support CoaXPress 2.1 or 1.0 standards and extends link distance over fiber as far as 80 kilometers. Transparent in design with no programming needed, PHORTE-4 is robust and user-friendly. Working with either multimode or single mode LC fiber cable, PHORTE is your best choice for architecting a reliable, high speed vision system.
Key Features
CXP-12 Fiber Extender (PHE4x) |
CXP-6 Fiber Extender (PHT4) |
• Fully supports CoaXPress 2.1 standard |
• Fully supports CoaXPress 1.0 standard |
• Supports all high-speed bit rates up to 12Gb/s |
• Supports all high-speed bit rates up to 6.25Gb/s |
• Standard micro-BNC connectors |
• Standard DIN 1.0/2.3 connectors |
• Extends up to 10 kilometers over single mode fiber |
• Extends up to 80 kilometers over single mode fiber |
• Uses QSFP+ module with MPO fiber connector or SFP+ module with LC duplex fiber connector |
• Uses standard LC duplex fiber interface with optional 1-fiber bi-directional connection |
• Provides operating status through UART port and LED indicators |
• Provides operating status through LED indicators |
• PoCXP capability allows the module to supply power to camera and receive power from framegrabber |
|
• Compact size: 88L x14W x41.25H mm |
|
• Plug-and-play: no configuration required |
|
Available Models
 | PHE4Q — New Model! Model (2 or 8 Fibers) —– Description PHE4Q-M — Extends up to 100 meters with OM3 multimode fiber or 150 meters with OM4 multimode fiber Includes: 1x PHORTE-CM, 1x PHORTE-FG, 1x 24V AC/DC adapter PHE4Q-M1 — Extends up to 300 meters with OM3 multimode fiber or 400 meters with OM4 multimode fiber Includes: 1x PHORTE-CM, 1x PHORTE-FG, 1x 24V AC/DC adapter PHE4Q-S — Extends up to 10 kilometers with single mode duplex fiber Includes: 1x PHORTE-CM, 1x PHORTE-FG, 1x 24V AC/DC adapter  Specifications |
 | PHE4S — New Model! Model (4 or 5 Fibers) —– Description PHE4S-M — Extends up to 300 meters with OM3 multimode fiber or 400 meters with OM4 multimode fiber Includes: 1x PHORTE-CM, 1x PHORTE-FG, 1x 24V AC/DC adapter PHE4S-S — Extends up to 10 kilometers with single mode duplex fiber Includes: 1x PHORTE-CM, 1x PHORTE-FG, 1x 24V AC/DC adapter PHE4S-B — Extends up to 10 kilometers with single mode simplex fiber Includes: 1x PHORTE-CM, 1x PHORTE-FG, 1x 24V AC/DC adapter Specifications |
 | Model (4 or 5 Fibers) —– Description PHT4-M — Extends up to 300 meters with OM3 multimode fiber or 400 meters with OM4 multimode fiber Includes: 1x PHORTE-CM, 1x PHORTE-FG, 1x 24V AC/DC adapter PHT4-S — Extends up to 10 kilometers with single mode duplex fiber Includes: 1x PHORTE-CM, 1x PHORTE-FG, 1x 24V AC/DC adapter PHT4-B — Extends up to 10 kilometers with single mode simplex fiber Includes: 1x PHORTE-CM, 1x PHORTE-FG, 1x 24V AC/DC adapter Specifications |
 | Model (2 Fibers) ——— Description PHT4D-10 — Extends up to 10 kilometers via singlemode fiber Includes: 1x PHORTE-CM, 1x PHORTE-FG, 1x 24V AC/DC adapter PHT4D-20 — Extends up to 20 kilometers via singlemode fiber Includes: 1x PHORTE-CM, 1x PHORTE-FG, 1x 24V AC/DC adapter PHT4D-60 — Extends up to 60 kilometers via singlemode fiber Includes: 1x PHORTE-CM, 1x PHORTE-FG, 1x 24V AC/DC adapter Specifications |

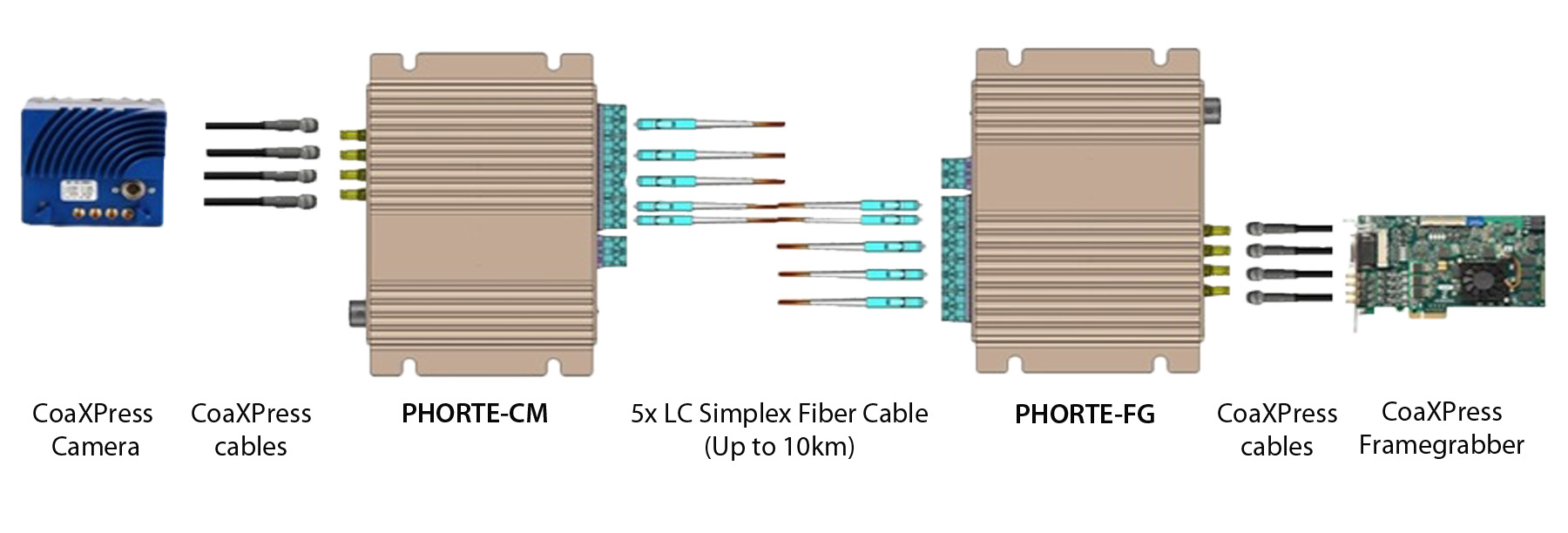

Setup Diagram
Cables & Accessories
 Break Out Fiber Cable | Break Out Fiber Cable LC to LC multimode 6 strand break out fiber. Fan-out length 0.5 meter. Product Number: LC-LC-M-B6-xx (Multimode) Part Number ——- Length* LC-LC-M-B6-050 — 50 meters LC-LC-M-B6-100 — 100 meters Product Number: LC-LC-S-B6-xx (Singlemode) Part Number —— Length* LC-LC-S-B6-050 — 50 meters LC-LC-S-B6-100 — 100 meters Specifications *Multiple lengths offered. Contact us for availability. |
Want more fiber? See our complete list of fiber patchcords.
